502.242.3

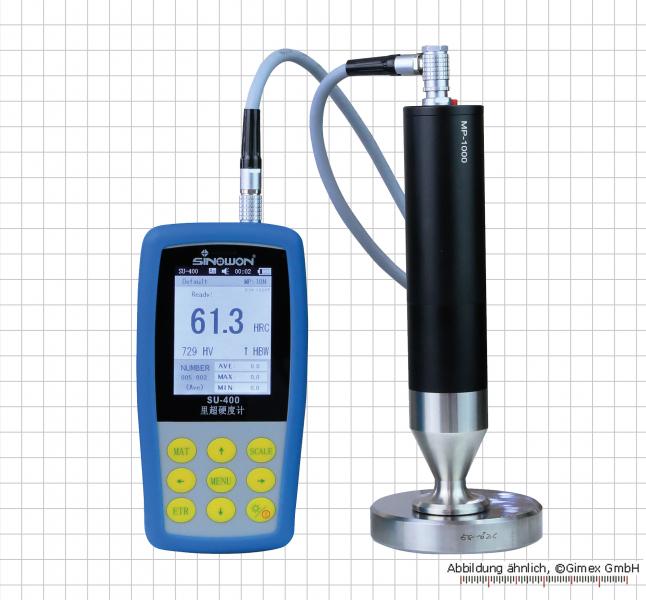

The ultrasonic hardness tester is ideally suited for mobile hardness testing where the focus is on fast and accurateresults. It is ideal for measuring small forgings, castings, spot welds, stamped parts, casting tools, ball bearings, sprockets, and for measuring the influence of heat or heat. It can not only work with the manual probes but also with the motorized probes, which are able to meet the different applications due to different surfaces.
It conforms the standard ASTM A1038-2005 and DIN standard DIN 50159-1-2008.
Technical specification
ultrasonic probe: motorized with 8 N measuring force
Range: 100 - 500 HBS; 100 - 1500 HV; 20 - 68 HRC; 55 - 100 HRB; 60 - 85 HRA
Accuracy ± 3% HV; ±1.5 HR; ±3% HB
Reading: 0,1 HR, 1 HV, 1 HB, 1 HLD,0,1 HS
Display:Color screen with backlight
Date output: RS 232 / Bluetooth
Data memory: 1000 meas. data and 20-groups of calibration data
Menu language: DE; EN; CHN; PRT; TUR
Working temperature: - 10 °C - 50 °C by humidity 30-80%
Workpiece min. thickness: 2 mm
Workpiece min. weight: 0,3 kg
Rechargeable battery: 4,2 V / 4800 mAH
Dimension: 160 x 80 x 31 mm
Weight (without probe): 0,5 kg
